View larger

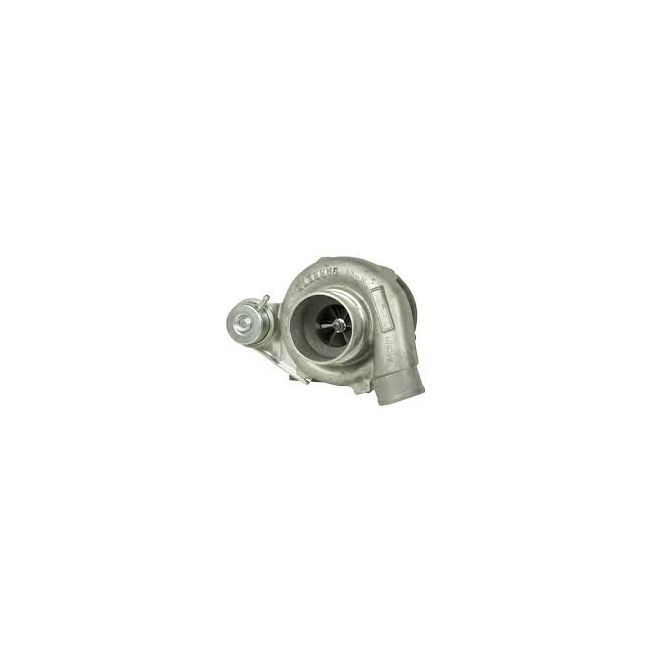

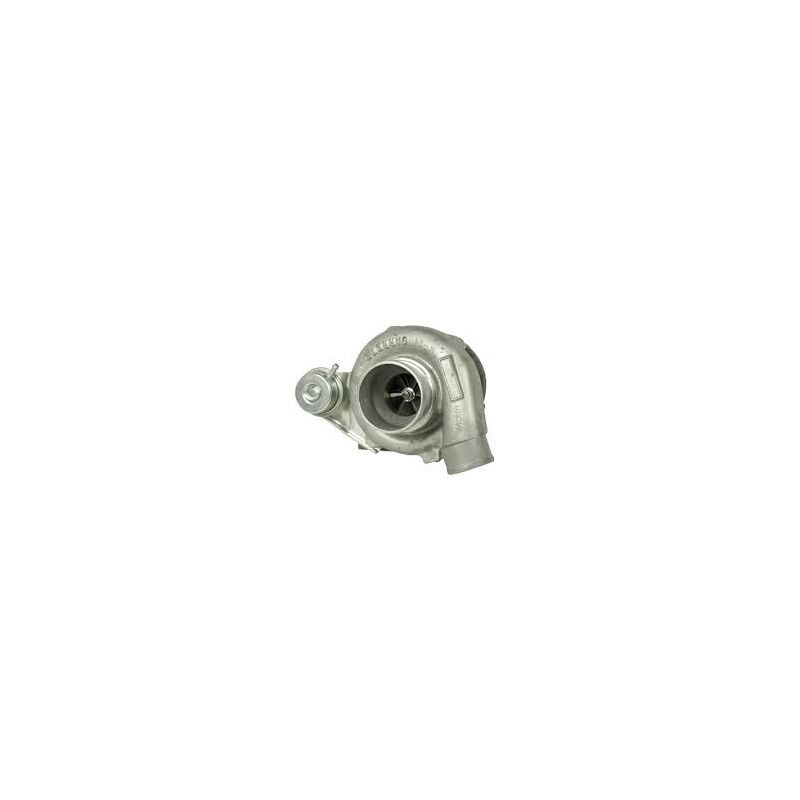

Garrett GT2860RS with 0.86 T25 5 Bolt 430609-231 Housing

Condition: New product

Turbine wheel is cast from "Inconel" material for extreme applications Upgrade turbocharger for GT2554R (PN 471171-3) and GT2560R (PN 466541-1); turbine housing flanges are outline interchangeable "Disco Potato" refers to the Nissan Sentra (potato-shaped body) with psychadelic color-change paint (disco) that was fitted with one of the first GT2860RS' in a project car build. The name stuck.

More details

Send to a friend
Send to a friend

Garrett GT2860RS with 0.86 T25 5 Bolt 430609-231 Housing
Turbine wheel is cast from "Inconel" material for extreme applications Upgrade turbocharger for GT2554R (PN 471171-3) and GT2560R (PN 466541-1); turbine housing flanges are outline interchangeable "Disco Potato" refers to the Nissan Sentra (potato-shaped body) with psychadelic color-change paint (disco) that was fitted with one of the first GT2860RS' in a project car build. The name stuck.
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Print

More info

Bearing Type	Ball
Cooling System	Oil & Water Cooled
Wastegated Housing	internal
Actuator Compete	Yes
Other Specifications	Turbine wheel is cast from "Inconel" material for extreme applications Upgrade turbocharger for GT2554R (PN 471171-3) and GT2560R (PN 466541-1); turbine housing flanges are outline interchangeable "Disco Potato" refers to the Nissan Sentra (potato-shaped body) with psychadelic color-change paint (disco) that was fitted with one of the first GT2860RS' in a project car build. The name stuck.

Horsepower : 250 - 360
Displacement : 1.8L - 3.0L

Turbo		Compressor				Turbine
Turbo PN	CHRA PN	Ind Whl Dia(mm)	Exd Whl Dia(mm)	Trim	A/R	Whl Dia(mm)	Trim	A/R
739548-5	446179-66	47.20	60.10	62	0.60	53.90	76	0.64
739548-5	446179-66	47.20	60.10	62	0.60	53.90	76	0.64
