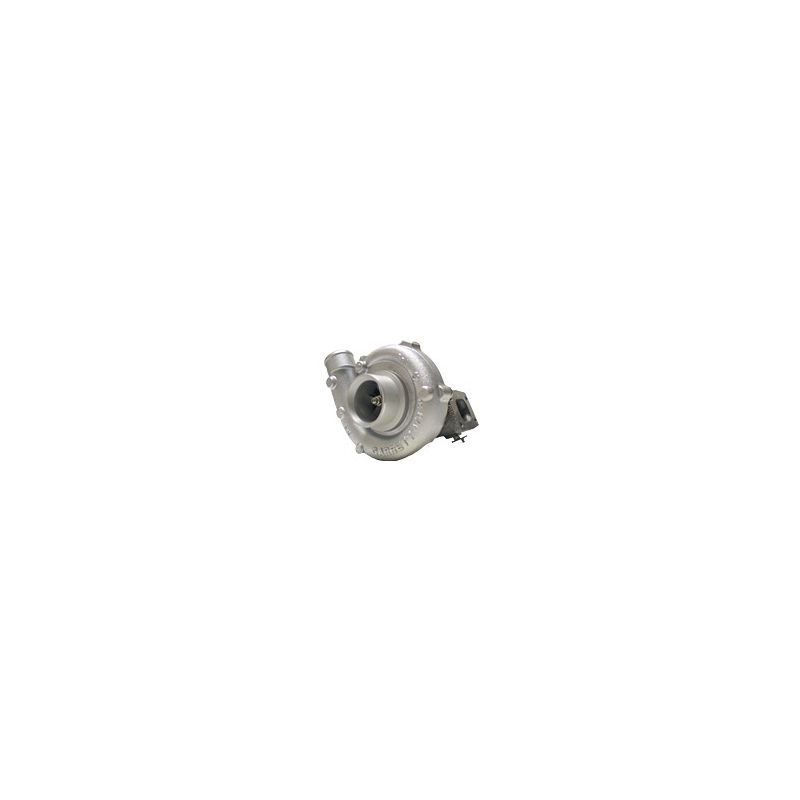

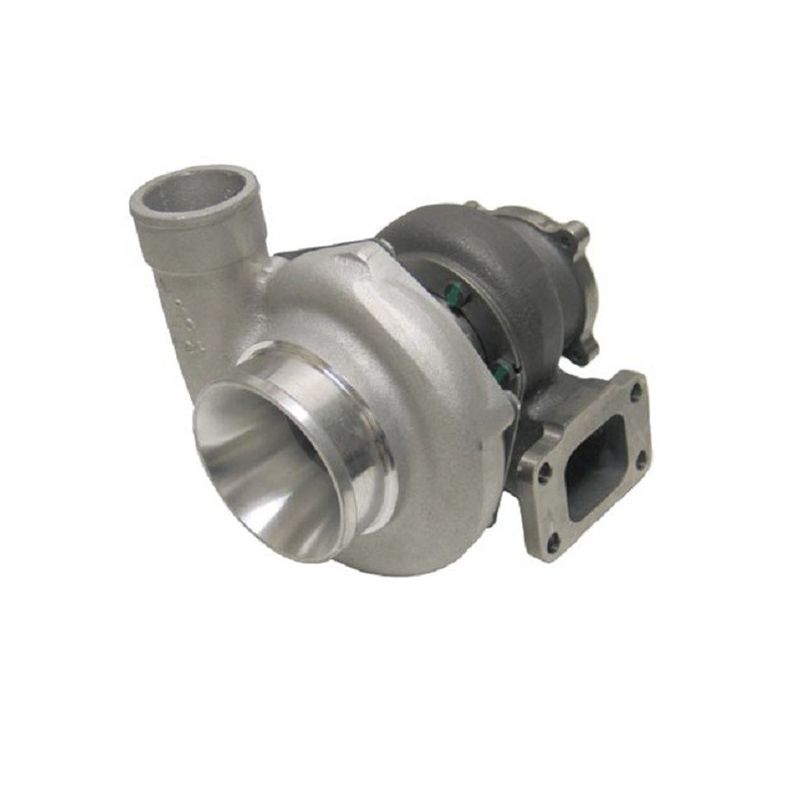

Garrett GT3071R 0.63 External Wastegate

Condition: New product

Turbine wheel cast from "Inconel" material for extreme applications Wastegated version of the GT3071R uses specifically-modified GT30 turbine wheels for use in the T25-style turbine housing Turbine housing flanges are outline interchangeable with GT2554R (PN 471171-3), GT2560R (PN 466541-1) & GT2860RS (739548-1)

More details

Send to a friend
Send to a friend

Garrett GT3071R 0.63 External Wastegate
Turbine wheel cast from "Inconel" material for extreme applications Wastegated version of the GT3071R uses specifically-modified GT30 turbine wheels for use in the T25-style turbine housing Turbine housing flanges are outline interchangeable with GT2554R (PN 471171-3), GT2560R (PN 466541-1) & GT2860RS (739548-1)
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Print

More info

Bearing Type	Ball
Cooling System	Oil & Water Cooled
Wastegated Housing	internal
Actuator Compete	No
Other Specifications	Turbine wheel cast from "Inconel" material for extreme applications Wastegated version of the GT3071R uses specifically-modified GT30 turbine wheels for use in the T25-style turbine housing Turbine housing flanges are outline interchangeable with GT2554R (PN 471171-3), GT2560R (PN 466541-1) & GT2860RS (739548-1)

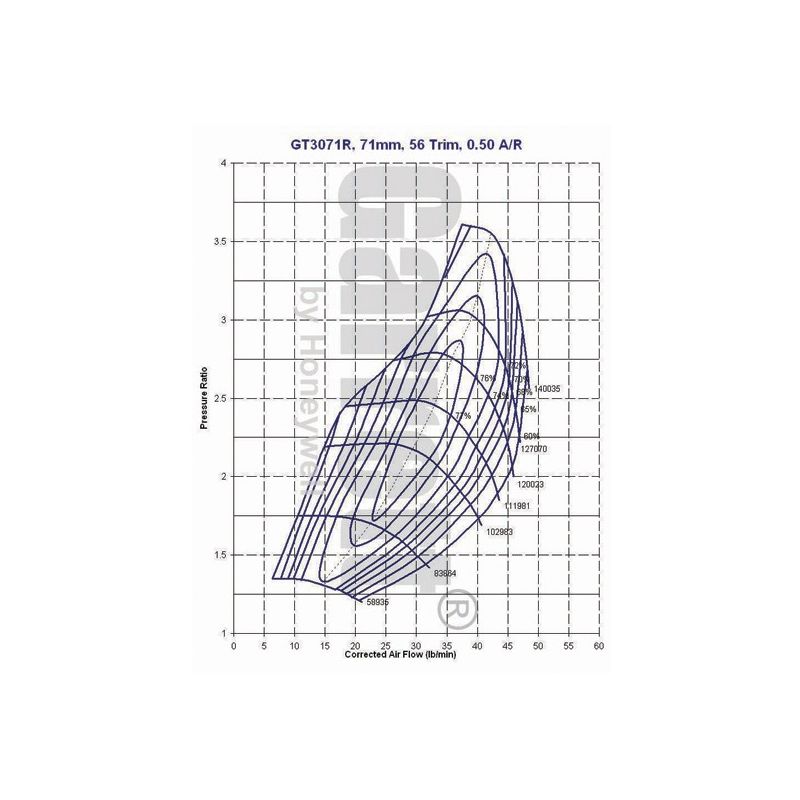

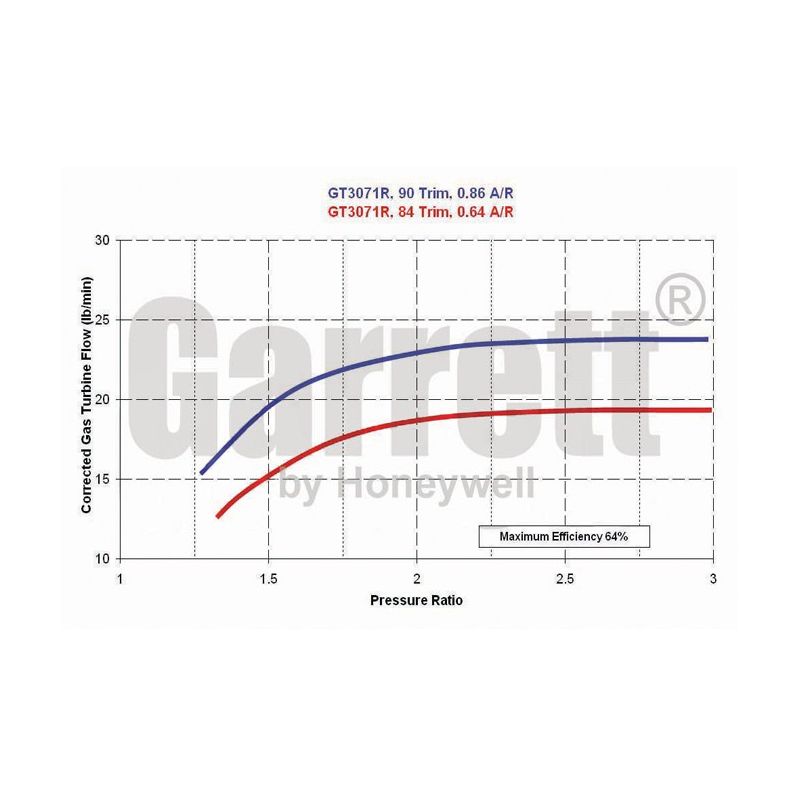

Turbo		Compressor				Turbine
Turbo PN	CHRA PN	Ind Whl Dia(mm)	Exd Whl Dia(mm)	Trim	A/R	Whl Dia(mm)	Trim	A/R
700382-3	700177-3	53.10	71.00	56	0.50	56.50	84	0.64
700382-20	700177-4	53.10	71.00	56	0.50	56.50	90	0.86
