New product
Turbine housing cast from high-nickel "Ni-Resist" material for extreme applications Turbine wheel cast from "Inconel" material for extreme applications Ported shroud compressor housing increases resistance to surge Works well in twin-turbo applications for large V8 engines
This product is no longer in stock
Availability date:

Garrett GT3582R 0.63 External Wastegate
Turbine housing cast from high-nickel "Ni-Resist" material for extreme applications Turbine wheel cast from "Inconel" material for extreme applications Ported shroud compressor housing increases resistance to surge Works well in twin-turbo applications for large V8 engines
Recipient :
* Required fields
or Cancel
| Bearing Type | Ball |
| Cooling System | Oil & Water Cooled |
| Wastegated Housing | external |
| Actuator Compete | Yes |
| Other Specifications | Turbine housing cast from high-nickel "Ni-Resist" material for extreme applications Turbine wheel cast from "Inconel" material for extreme applications Ported shroud compressor housing increases resistance to surge Works well in twin-turbo applications for large V8 engines |
| Turbo | Compressor | Turbine | ||||||
|---|---|---|---|---|---|---|---|---|

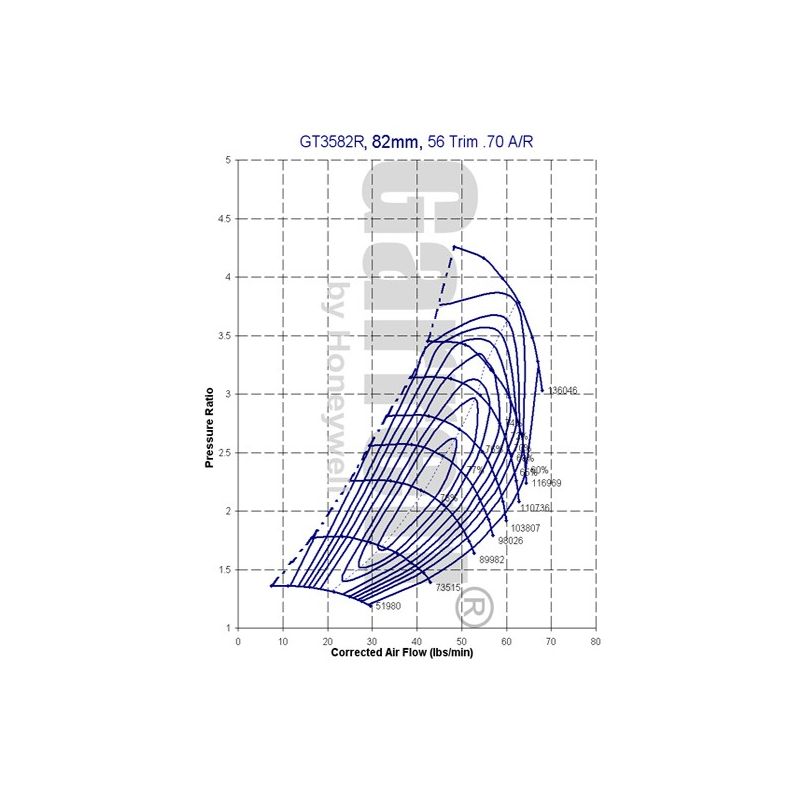

| Turbo PN | CHRA PN | Ind Whl Dia(mm) | Exd Whl Dia(mm) | Trim | A/R | Whl Dia(mm) | Trim | A/R |
| 714568-7 | 706451-5 | 61.40 | 82.00 | 56 | 0.70 | 68.00 | 84 | 1.06 |
| 714568-8 | 706451-5 | 61.40 | 82.00 | 56 | 0.70 | 68.00 | 84 | 0.82 |
| 714568-9 | 706451-5 | 61.40 | 82.00 | 56 | 0.70 | 68.00 | 84 | 0.63 |

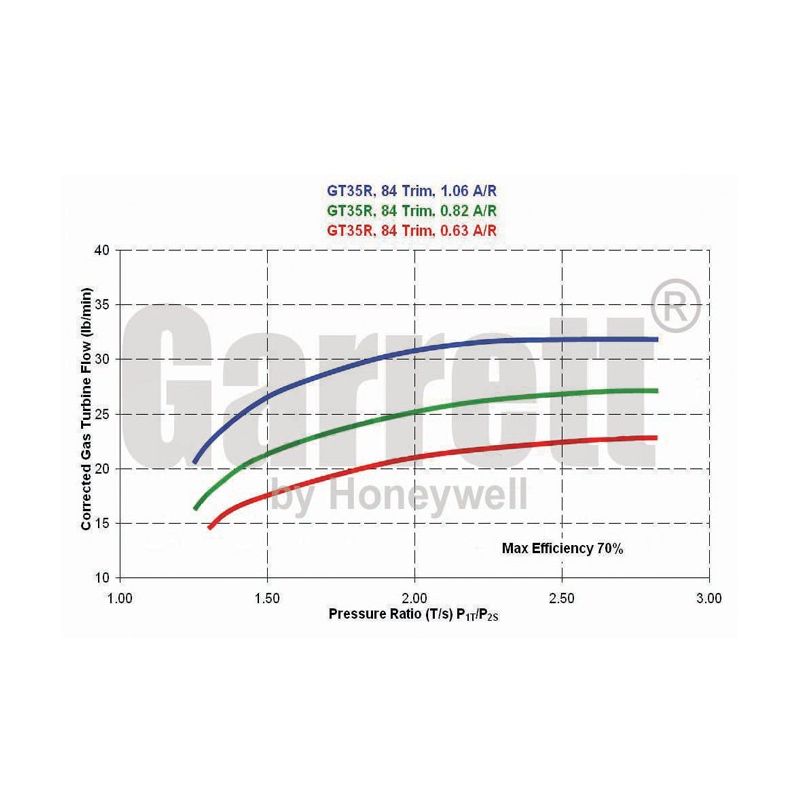

| PN | A/R | Type | Divided Housing | Inlet | Outlet |
|---|---|---|---|---|---|
| 740902-4 | 1.06 | Free Float | N | T3 | 4-Bolt |
| 740902-5 | 0.82 | Free Float | N | T3 | 4-Bolt |
| 740902-6 | 0.63 | Free Float | N | T3 | 4-Bolt |
| 740902-16 | 1.06 | Free Float | N | T4 | V Band |
| 740902-17 | 0.82 | Free Float | N | T4 | V Band |
| 740902-18 | 0.63 | Free Float | N | T4 | V Band |
| 740902-19 | 1.01 | Free Float | Y | V-Band | V Band |
| 740902-20 | 0.83 | Free Float | Y | V-Band | V Band |
| 740902-21 | 0.61 | Free Float | Y | V-Band | V Band |
| 740902-24 | 1.01 | Free Float | Y | T3 | V Band |
| 740902-24 | 1.01 | Free Float | Y | T3 | V Band |
| 740902-25 | 1.01 | Free Float | Y | T3 | V Band |
| 740902-26 | 0.83 | Free Float | Y | T3 | V Band |
| 740902-27 | 0.61 | Free Float | Y | T3 | V Band |
| 740902-31 | 1.01 | Free Float | N | V-Band | V Band |
| 740902-32 | 0.83 | Free Float | N | V-Band | V Band |
| 740902-33 | 0.61 | Free Float | N | V-Band | V Band |
| 813444-1 | N/A | Free Float | Y | V-Band | Divided V-band Flange Adapter (inlet) |
