Bosch Green Giant 465cc 42lb/hour Fuel Injector SAAB

 NEW 465cc FUEL INJECTOR which will fit the following Saabs:

Saab 900- 1994-1998- all 4 cylinder petrol models (turbo)
Saab 9000s- 1994-1998- all 4 cylinder petrol models (turbo)
Saab 9-3- 1998-2002- all 4 cylinder petrol models (turbo)
Saab 9-5- 1998-2009- all 4 cylinder petrol models (turbo)

This is a high impedance fuel injector with a flow capacity of 465cc @ 3.8 bar. The injectors use a multi-hole disc fuel delivery nozzle with a wide cone spray for maximum fuel atomization.

These are commonly referred to as 'GREEN GIANTS'.

Please Note: Modified software will be required for the injector to function properly. Please check with us if you are unsure.

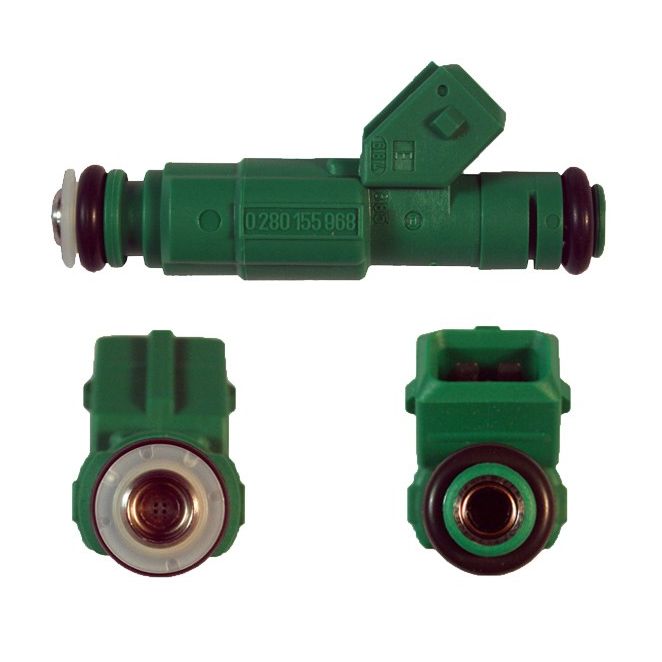

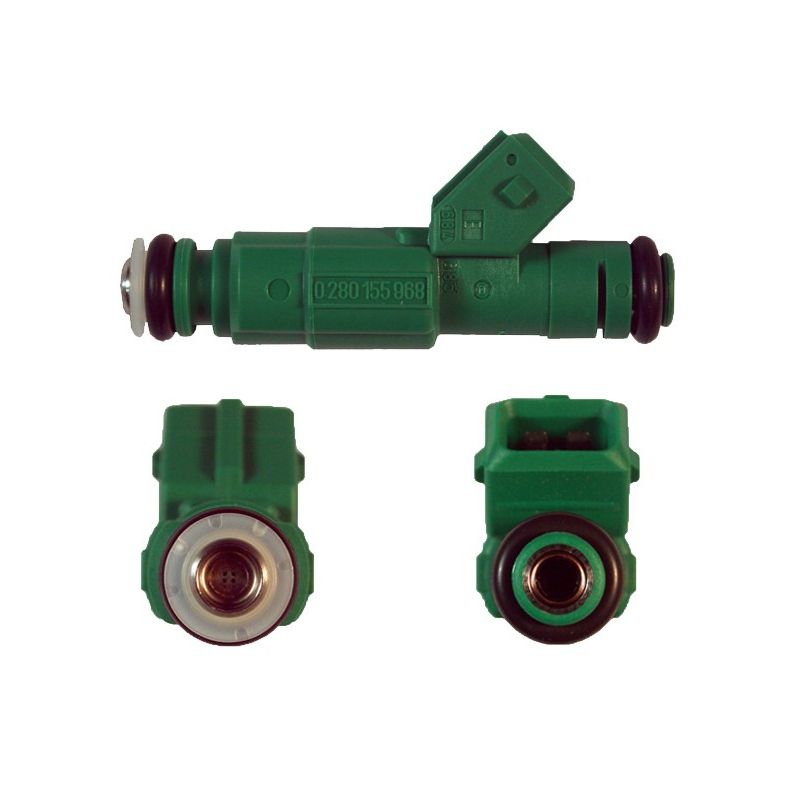

This is an ORIGINAL BOSCH unit with part number 0280155968

Genuine Bosch Green Giant 42lb/hour Fuel Injectors

These superb Bosch injectors gained notoriety for their excellent flow and response characteristics in modern Volvo turbo applications. The characteristics necessary to meet stringent European emissions laws while supplying a wide dynamic flow range produces and excellent, balanced injector. The result was so popular in the aftermarket, it was nicknamed the "Green Giant" Injector.

These injectors flow 43 lbs/hr at 43.5 PSI ( 3 BAR ) and much more at higher PSI! In addition, these units are high-impedance. Despite the high flow rate, they are linear and controllable at low pulse widths. This allows you to use a larger injector than normally possible without hurting idle and low speed driveability. Adding to the flexibility of application, these units are high-impedance; making them compatible with most ECUs, while delivering the most flow available in a High-Impedance injector. These injectors represent the most current Bosch engineering and are used on many high power turbo oem applications.

These injectors are able to function at high fuel pressures and don’t exhibit the high fuel pressure handling problems found with many other high flow high-impedance injectors. This makes these injectors very well suited to turbocharged and supercharged applications that see high fuel system pressures and in fact, that is exactly what they were designed for!

Engine performance and running quality are enhanced through the optimized spray pattern. Unlike competitors “pencil stream” high flow injectors; these High Flow injectors utilize a split / wide cone spray pattern for improved mixture preparation and atomization. This results in lower BSFC and better idle quality than many injectors with less flow.

Features:
Genuine, reliable Bosch Injectors
Excellent response characteristics
Robust Design
High Impedance
Low Impedance performance characteristics with High Impedance Compatibility

Specifications:
Coil Resistance: 12 Ohms (This high-impedance injector will work with all factory ECM/PCM injector drivers)
Spray Pattern: Dual Spray Wide Cone / Split Cone
Electrical Connector: EV1
Fitted with Viton upper and lower o-rings.
Static Flow Rate @ 43.5PSI (300kPa): 42 lb/hr

Applications:
Volvo & many European makes
Many Japanese makes
Made for high pressure, harsh environment turbo & supercharged applications!

Cross Reference:
Bosch 0 280 155 968 ( 0280155968 )
Bosch 0 280 150 558 ( 0280150558 )
